Old 11/25/2004, 09:18 PM   #1
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147
Hang On Wall Raceway

Hang On Wall Raceway:



This is a way to get strong lighting close to the corals, yet not take up any counter space. My vision was a set of four of these units on the wall, one cascading in to the next, but I ended up starting with two for now.


Getting started:

Get your acrylic put together- This project uses a piece of 1/4" material that is 48.5" wide by 18.5" wide, plus two 5.5x5.5" pieces. It also uses two strips of 3/8" thick cast acrylic that is 1" x48".

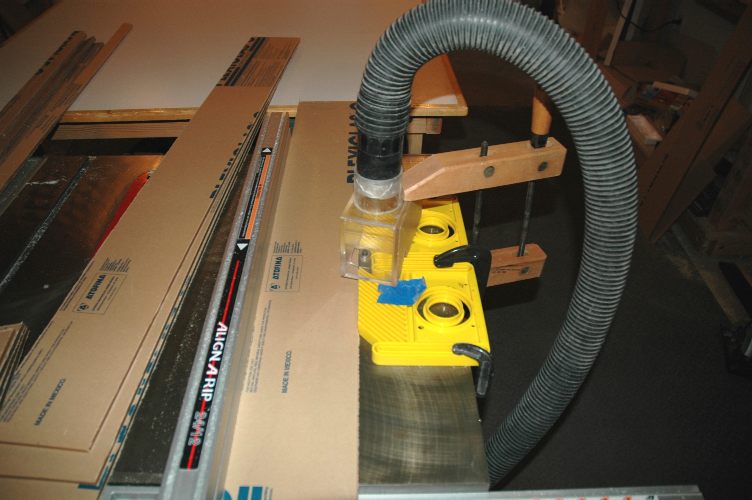

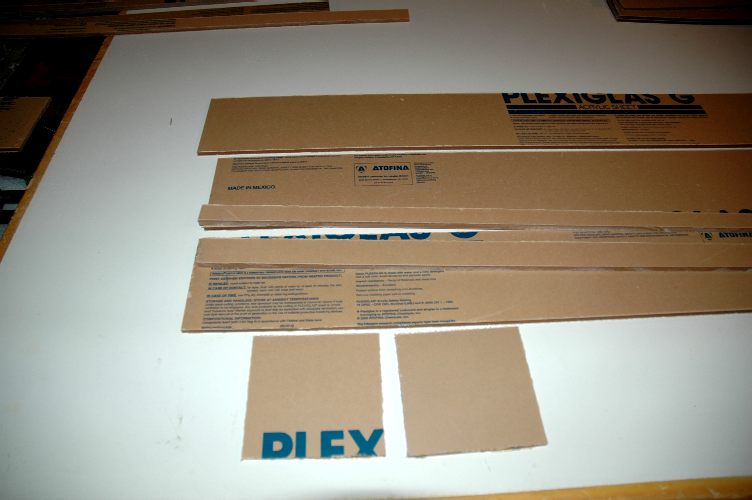

Draw out the pieces you need to cut on the sheet of acrylic. Rip the sides to 5.6"x48.25", and the base to 6.25"x48.25". The end pieces are rough cut to 5.6"x5.6". You cut them a little over sized on the table saw, so you can trim them to exact size and clean up the edges on the router table.



Using the router table and a fence (or a jointer if you don't have a setup like this) take 0.050" or so off of each side to smooth it out. Set the fence once, and do both sides and he end panels at once, so they are all exactly the same height. Note the yellow fingers on the router table- They keep the material from pulling in to the bit, which is dangerous and leaves divots that need to be trimmed off. Use a 3/4" dia. or larger bit if possible.
You need to trim all four sides of the end pieces, and just the top and bottom of the sides. No trimming on the bottom is neccisary.
Also at this time make the two pieces for the top frame- Just rip them to 1" wide, and 48.25" long.
Install the round-over bit, and round over the edges of the top frame. Much easier now then later.
When you are done you should have:
Two each 5.5x5.5"
Two each 5.5"x48.25"
One 6.25"x28.25"
Two each of 3/8" 1"x48.25", rounded over on one long side.

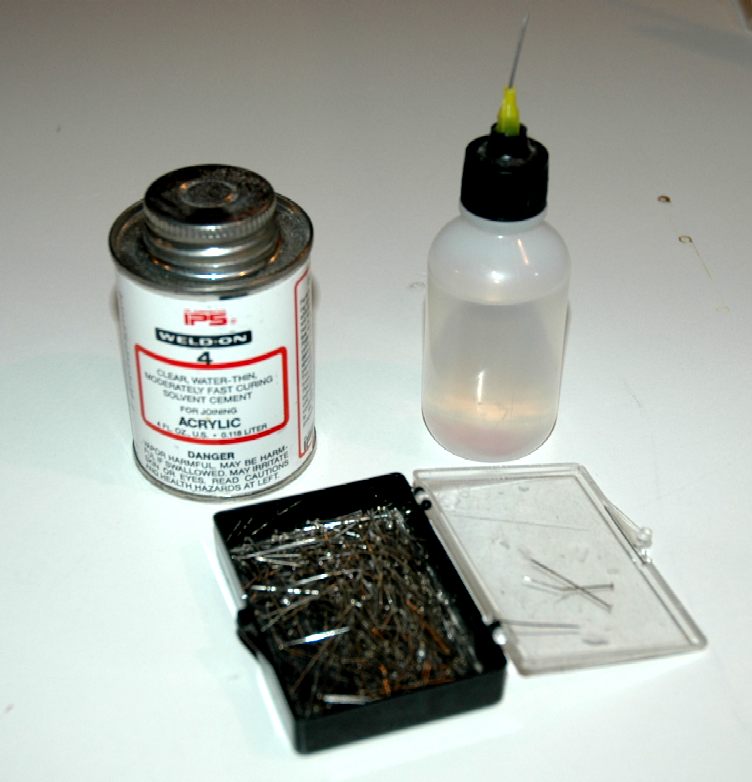

Here is the glue and bottle that we will be using: Weldon #4 and a 2 fluid ounce squeeze bottle with a 20 gauge needle.
The pins are standard sewing pins. You could use a smaller pin for 1/4" acrylic, but these work fine too.





Now we are ready for the glue up. Remove the paper from both sides of the ends, and one side of a side panel. Place the side panel on a flat table, and use a pair of angle braces to prop up the end panel, about 1/8" from the end. The goal here is to glue the end panel close to the end, but leave enough hanging out that the flush-trim bit in the router and cut it flush.
We will be using the "Pins" method here- Review this thread for more details.

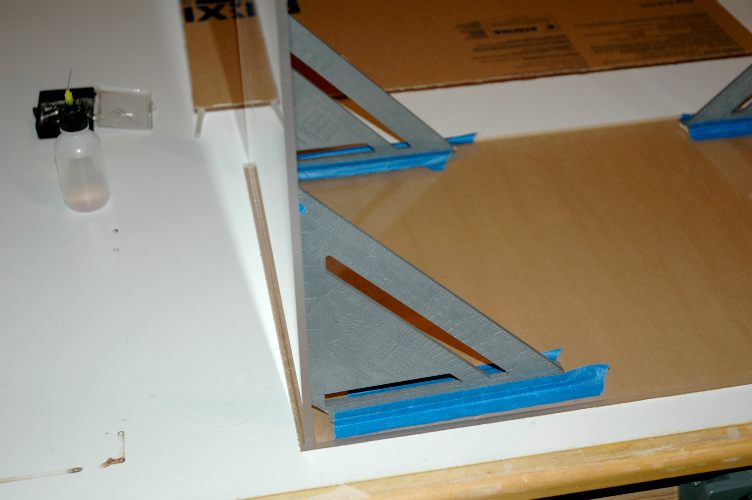

Install one pin at each end. If you have a flat enough table, you don't need a shim under each pin.
Line everything up, then fill the joint with Weldon #4.
Wait about 30-60 seconds, then slide out the pins. The panel will be pretty slippery on the pins, and worse when the pins are pulled. Just get it back in to place, and hold it there for 30 seconds. Check the ends to make sure they are flush (both of them) If not, they will take more work later to get a leak-free tank.

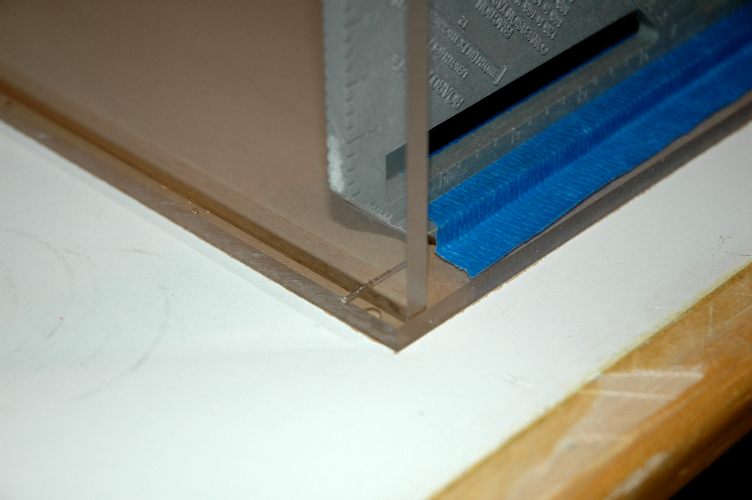

Here is the end panel without the pins.

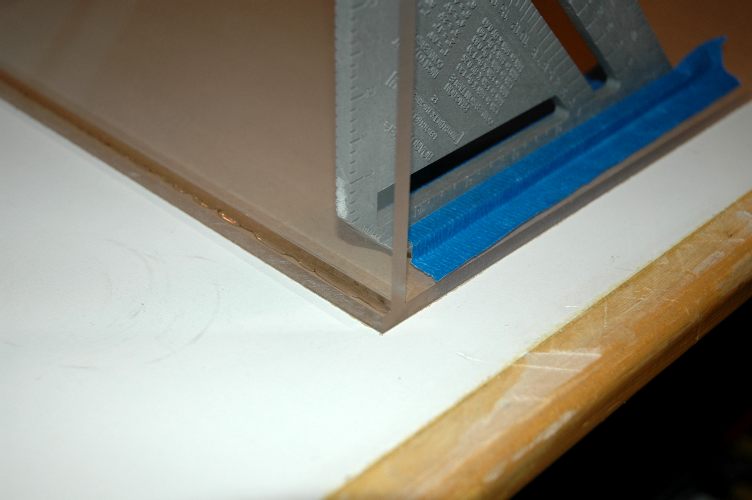

Here is the joint as it dries- Note the clear seam, and the ooze on both sides of the joint. This is what we are looking for- Good clean, strong joints. Don't touch it for at least two hours, preferably four hours.

Repeat for the other end panel.



Strip the paper off of the one side of the other side panel and lay it out on the table. Carefully flip the panel with the two ends on it over, and set it on this piece. Use a block of wood to hold up the center, or it will sag and cause the joints to not be straight.
Repeat the glue up method- This time you don't need the braces, as the top joint holds the panel in place.



At this point let it dry overnight. The next day you can use the flush-trim bit in the router to trim the end edges, or wait until later.


(cont)


Zephrant is offline   Reply With Quote
Old 11/25/2004, 09:19 PM   #2
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147

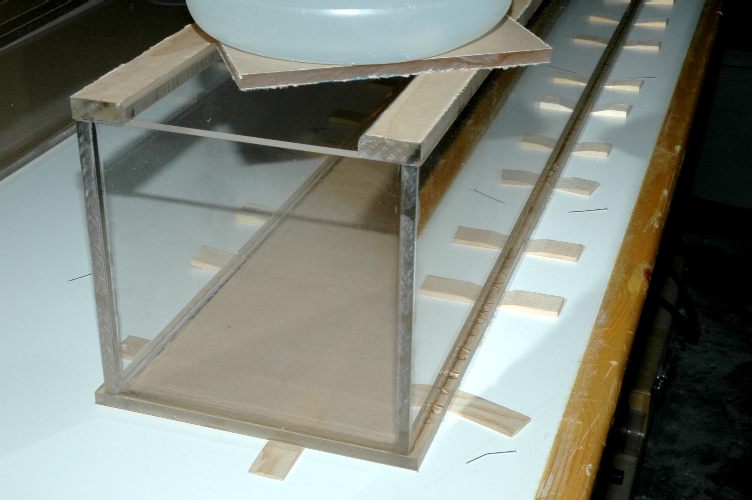

Strip the paper from one side of the top pieces, and get ready to put them on. Since this is such a long joint, you will need shims. See that PINS thread again for details.
You can do both pieces at once, if you are quick, but if this is your first tank, do one at a time and wait an hour in between them. Place a 1/2 gallon of water every two feet or so to give it a little weight. Don't go overboard.

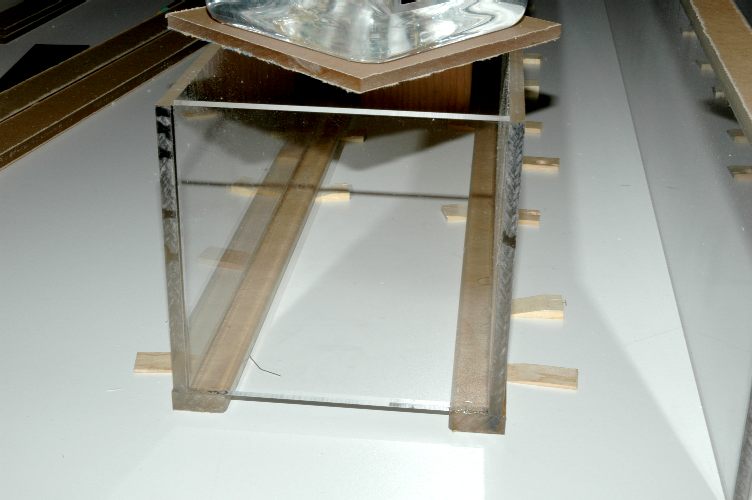

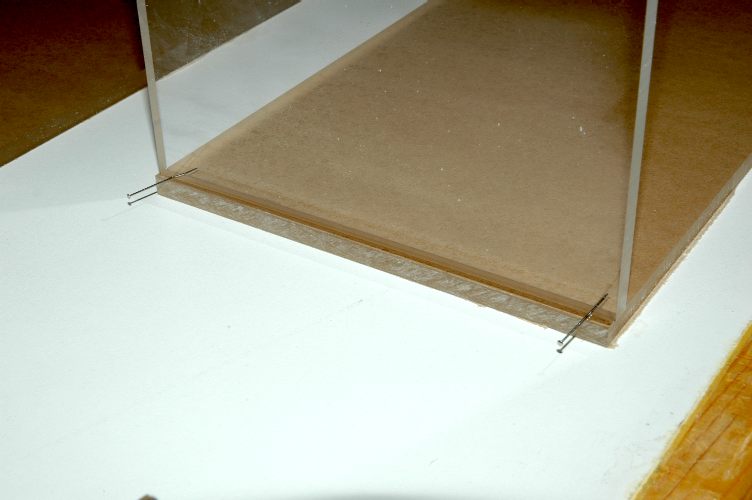

And last, glue the bottom on, using the same pins method as before. It is important to glue the bottom on last, so the fumes have a place to escape. Reminder- The fumes are toxic, cancer causing and smell. Use appropriate ventilation and a resperator.

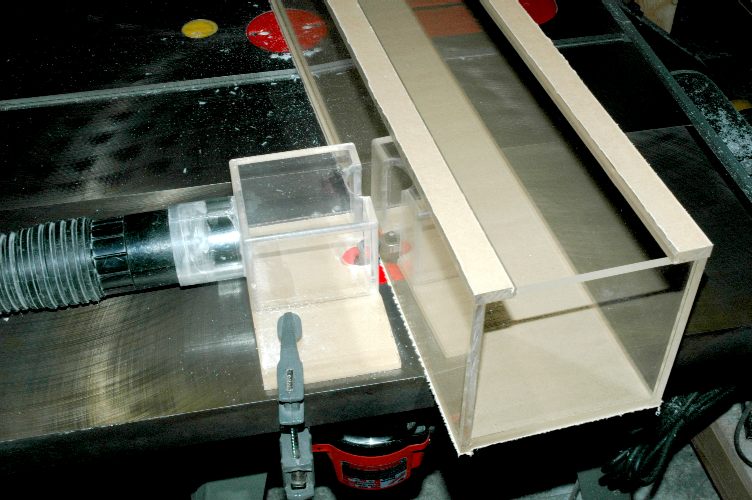

Again, let the tank dry over night. Setup the flush-trim router bit again, and trim all the edges flush. Next put in the 1/8" round-over bit, and round over all the exposed edges.
Next you can flame polish the edges (use MAAP), or buff them out. Remove the remaining paper before doing either.

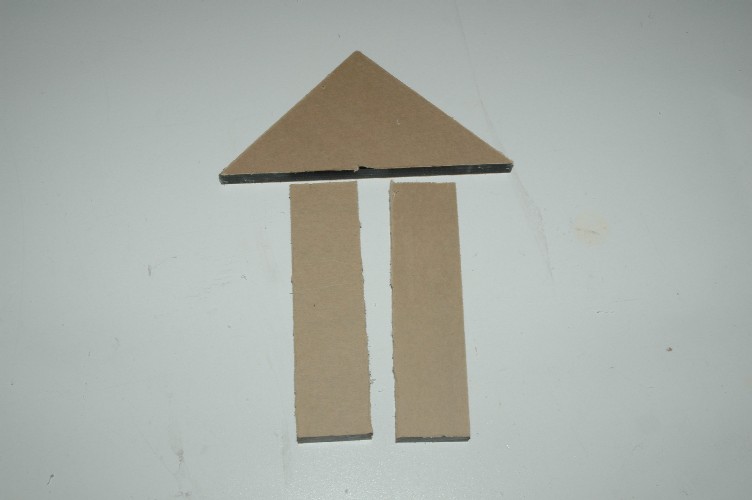

Next up comes the mounting brackets. I wanted something that looked nice, and was sturdy. I had some 1/2" black acrylic around, so made the supports out of that. This is a 6"x6" triangle, and a 5.5"x2" and a 6"x2" piece. Cut them out with the table saw to the approximate size. Make up enough parts to put at least three brackets on each unit.
Drill two holes in the 6" piece near the top, to allow mounting screws to go though it. Counter-sink the holes.

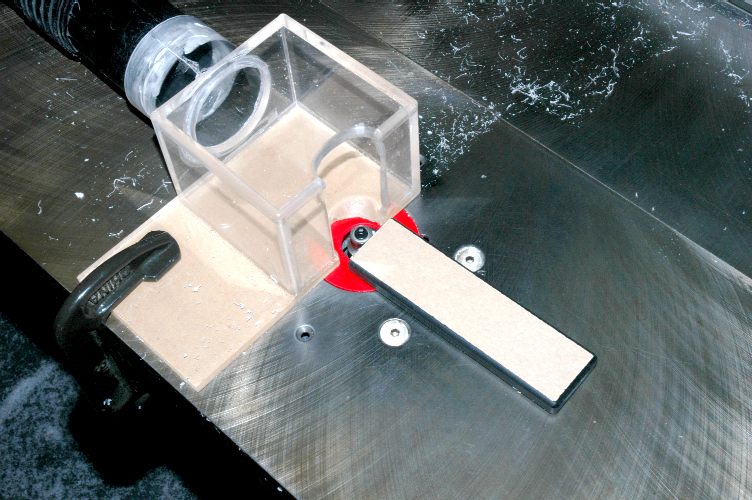

Using the router, smooth the edges then round them over with the 1/8" radius bit. You can also use a palm sander here, but it is much slower.



Glue them up as above. Using the pins on the small parts is tough, but gives a stronger bond. We don't want these things to fail on us. Let dry overnight.

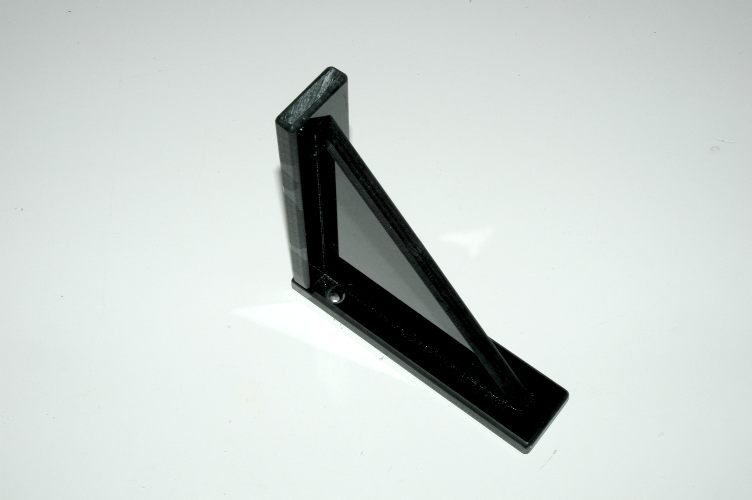

Make sure all the corners are rounded over, and flame polish as desired.

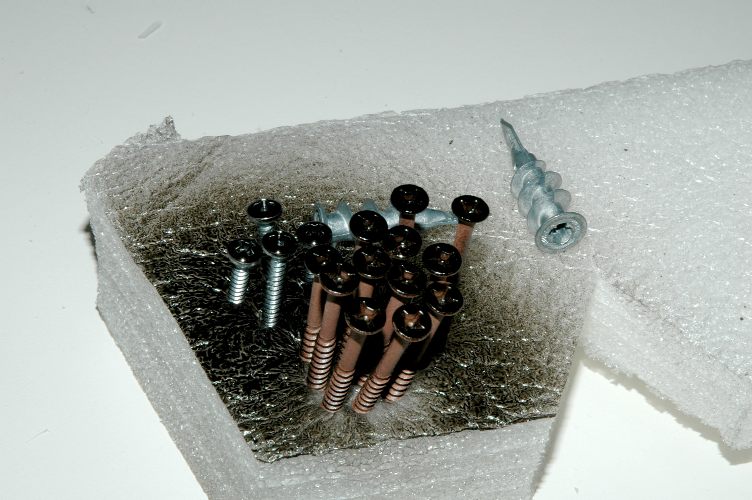

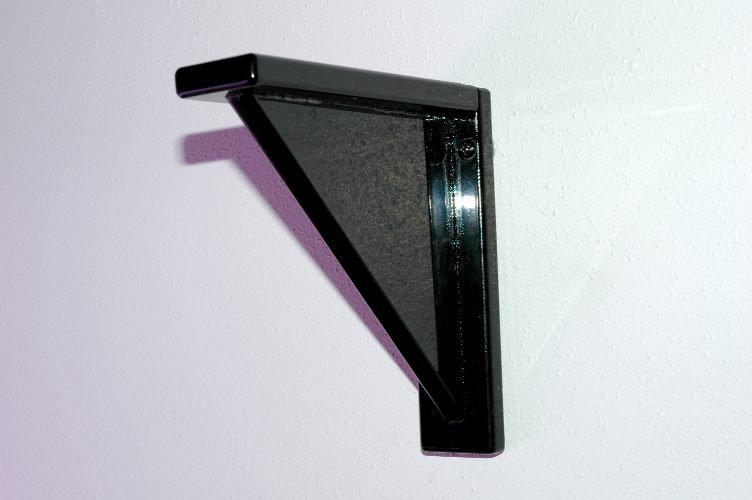

Since I wanted the mounting screws to blend in, I spray- painted the heads black. I am using a mixture of long deck screws that will go directly in to the stud, and 50# anchor bolts. The end brackets will be in to studs, the center bracket gets a pair of the 50# anchors. Since the whole thing will weigh about 65 pounds, each of the three shelves will only carry 22 pounds.

(cont)


Zephrant is offline   Reply With Quote
Old 11/25/2004, 09:19 PM   #3
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147

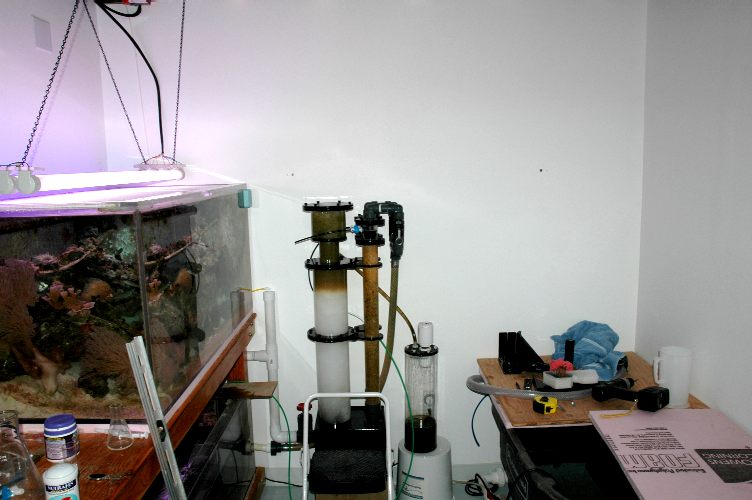

Locate where you want them, and find the studs in the wall. Mark them, and get out the 4' level.



Make sure you have room for all of them, and that you space them far enough apart so you have room for lights and plumbing. Here I have the lower one set just far enough above my skimmer (SK5200) so there is plenty of room to clean it.

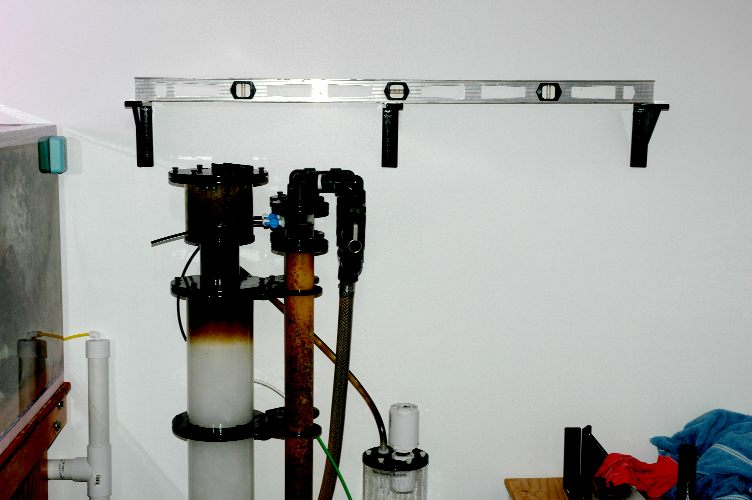

Install the first bracket, then the other end bracket, using the level. Carefully install the middle bracket, so it is just snug up against the center of the level. You can use shims later if needed, but it is better to get it right here.




Here is what they look like on the wall- Sleek, and the fasteners are invisible.

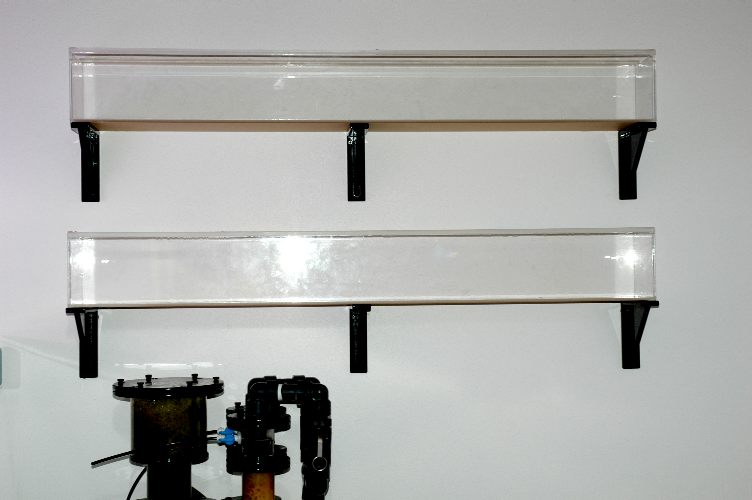

Here are both tanks sitting on their shelves. No plumbing or lights yet.



Next up was the overflows overflows. I wanted to have lots of room for water to flow between units, as I will run a pump from the bottom on to the top one to recirculate water. I will also pull water from the main system and drop it in to the top, and have an overflow to the sump on the bottom unit.

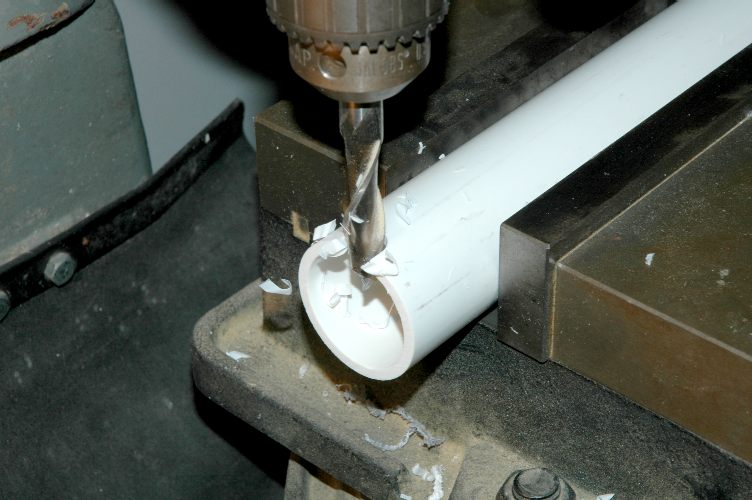

Here I'm cutting slots in to a piece of 1" pipe to make the return to the sump. I cut teeth in to it all the way around, to approximate an overflow box. I did the same thing on the 1.5" pipe at the other end. I did not know how much water flow I would have, so wanted to make something that was easily changeable when the water was in the system. This way if I decided on a higher water flow, I can make a box, or larger tube overflow as needed.

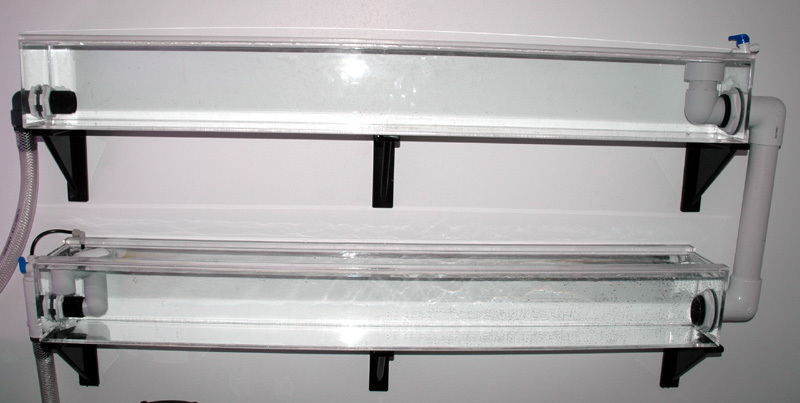

And here is a finished shot, two weeks later. I've moved all of my Ricordia in to it, as well as some frags. I added a mass of algae to the right bottom end, to help stop the bubbles coming from the right side flow. I'll be working on some kind of a bubble trap for that later.

I did lose a few Ricordia- Too much light for them. I've added some shade cloth (screen material) to knock the light down some, and will work on acclimating them. The SPS frags are doing great however.


Things to change next time:
I'll use black material for the back, and maybe the bottom to help with picture taking.
I might go wider and taller- 8" maybe. 6" is fine, but does not leave much room for a cleaning magnet.

Zeph

(removed bad link)



Last edited by Zephrant; 11/26/2004 at 10:28 PM.
Zephrant is offline   Reply With Quote
Old 11/25/2004, 09:28 PM   #4
Morbo
Registered Member

Morbo's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Posts: 364
Nice work. Very clean and sharp looking set-up. Never would have thought of that. I could easily mount one over my existing frag tank saving alot of floor space. Thanks for the detailed info and pics.


__________________
"The blood on my hands is merely proof of my ambition"

Current Tank Info: 38 gallon flat back hex softie tank. New 30" SPS cube in progress...hehehe
Morbo is offline   Reply With Quote
Old 11/25/2004, 09:48 PM   #5
rufio173
Registered Member

rufio173's Avatar

Join Date: Jul 2001
Posts: 4,482
It's the little touches that count, Like the spray painted screws! Very nice setup and it allows for good flow along the whole raceway.

Definitely a viable option if you are strapped for space and if you've got the skills to pull it off.

I'm glad you finally got the time to set it all up.

Brent, is there anything keeping the raceway tanks on their supporting racks except for their weight?

Peace,
John


rufio173 is offline   Reply With Quote
Old 11/26/2004, 04:19 AM   #6
scottk
Registered Member

Join Date: Jun 2002
Posts: 121
Sweet! Impressed with the use of space and the single bulb lighting. Nothing should escape your notice in those.

Cool idea!


scottk is offline   Reply With Quote
Old 11/26/2004, 06:28 AM   #7
Frick-n-Frags
Registered Member

Join Date: Oct 2000
Location: north central OH
Posts: 10,740
kick-@$$ tutorial hommes!!!!! thanks for sharing!!!!!

I'm rapidly losing my fear of acrylic by seeing threads like this.


__________________
Only Dead fish swim with the current.

Current Tank Info: 2 50 gal tanks, sump, still BB
Frick-n-Frags is offline   Reply With Quote
Old 11/26/2004, 07:04 AM   #8
Freed
It's what it's

Freed's Avatar

Join Date: Mar 2003
Location: 41 2' 45" N 85 8' 43" W
Posts: 7,757
I assume you have to have a router table and a high speed table saw to cut the acrylic?


__________________
Freed

Current Tank Info: 180gal(1120 watts of MH/VHO light), 60gal "sump", Deltec 601 calcium reactor, Euro Reef CS8-3+ skimmer, 20 gallon QT
Freed is offline   Reply With Quote
Old 11/26/2004, 09:01 AM   #9
webpolk
Registered Member

webpolk's Avatar

Join Date: Jan 2003
Location: McKinney, Texas
Posts: 547
Wow, brilliant idea!

Thanks Zeph!


webpolk is offline   Reply With Quote
Old 11/26/2004, 09:12 AM   #10
mattydub
Registered Member

Join Date: Feb 2003
Location: state college, Pa
Posts: 627
you know in all honesty, it's people like you zeph that make this hobby so accessable and enjoyable. I really appreciate your effort on this (and several previous) post to describe the how-tos as if we've never done or tried anything like this before. It really helps newbies like me.

Now that being said can you make me one too PLEASE! :-P


__________________
THE only way to be successful in reefkeeping....Philippians 4:6-7!

Current Tank Info: 26g Bowfront softies, 90g SPS
mattydub is offline   Reply With Quote
Old 11/26/2004, 09:37 AM   #11
adrinal
Moved On

adrinal's Avatar

Join Date: Dec 2003
Posts: 765
Thanks Zeph,
We apriciate your enthusiasum! I hope one day I can contribute as much back to the hobbie!

Do you think a cheep reflector and lifting the bulbs up a tad might help with heat and lighting in general?


adrinal is offline   Reply With Quote
Old 11/26/2004, 09:48 AM   #12
derrikd
Registered Member

derrikd's Avatar

Join Date: Jan 2003
Location: New Braunfels, Texas
Posts: 3,368
wow, that is a great idea, good work


derrikd is offline   Reply With Quote
Old 11/26/2004, 10:04 AM   #13
bkwudzjeep
O|||||||O

bkwudzjeep's Avatar

Join Date: Aug 2002
Location: Central Florida
Posts: 2,079
Very nice!!!
Does it run pretty quiet? What are the little ball valves for?


__________________
"You can lead a horse to water, but a pencil must be lead." ~Laurel and Hardy

Current Tank Info: Taking a break for a while
bkwudzjeep is offline   Reply With Quote
Old 11/26/2004, 11:31 AM   #14
marm64
Registered Member

Join Date: Aug 2002
Location: Saginaw, MN
Posts: 1,042
Nice jog Zeph.

Are you lighting with a VHO. I wonder how this would work with T5 lighting. I might have to give this a try for some frags that I would like to grow out.

Thanks for all the nice projects.


marm64 is offline   Reply With Quote
Old 11/26/2004, 09:46 PM   #15
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147
Howdy all- Thanks for the comments- It is that kind of encouragement that makes it worth the effort for these.

John- Nothing extra holding the tanks on, other than dead weight. It may be a good idea to make the supports with a lip on the end, to help keep the tanks from sliding off. Using metal shelf supports would be a good idea too.

Freed- I meant to mention the tools used:
- Table Saw (Good acrylic blade optional)
- Router table with straight bit, and 1/8" round-over bit.

It can be done with more or less tools, but that is the minimum that should be used to make it relatively easy.

Adrinal- The VHO bulbs I use have a built in reflector, but adding one would help a little. It would also keep down on evaporation. I've noticed that I evaporate about a gallon more a day than I used to.

BK- It runs pretty quiet- The ball valves are to adjust the air that is allowed to go down the overflows. Properly adjusted, they are silent.

Marm- Yep, those are old URI 48" VHO bulbs (110 watts each).

You're welcome all-

Zeph


Zephrant is offline   Reply With Quote
Old 11/26/2004, 10:12 PM   #16
N8MAN1068
Registered Member

Join Date: Aug 2004
Location: Caroline, VA
Posts: 184
for some reason, i was expecting to see a slot car track running along the ceiling...


__________________
65gallon, 29L sump
Outter Orbit T5/150w MH fixture
Coralife 125 super skimmer
1 bright orange Zoa
1 Bright green+yellow poly frag
1 Pink-Green hammer coral
1 Crocea Maxima clam
1 Yellow Tang

Current Tank Info: 65g mixed
N8MAN1068 is offline   Reply With Quote
Old 11/27/2004, 09:32 PM   #17
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147
I'm seeing some bow in the tanks now- Two weeks of warm water and lights have let them settle in some. I'll be adding a center brace to them tomorrow. Probably slip in a 2" wide brace out of 3/8", right in the middle. It does not need to be much to hold them in better.

Zeph


Zephrant is offline   Reply With Quote
Old 11/28/2004, 10:32 AM   #18
cj_basser
Registered Member

cj_basser's Avatar

Join Date: Jul 2004
Location: Westerville, Ohio
Posts: 1,662
will the lighting work with just some NO bulbs, or do they have to be VHO?


cj_basser is offline   Reply With Quote
Old 11/28/2004, 11:41 PM   #19
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147
I run a single 48" NO bulb on my sump (Ballast for the second one burned out) and I grow Ricordia, Xenia, Macros, shrooms and even two hearty SPS (very brown, but growing). That is at a depth of 10" from the bulb.

Drop that to 5", and you have four times the light, so yeah, it could work fine.

Standard disclaimers apply- Not all corals like the same amount of light, etc, etc, etc...

Zeph


Zephrant is offline   Reply With Quote
Old 11/29/2004, 12:35 AM   #20
Gujustud
Registered Member

Gujustud's Avatar

Join Date: Dec 2003
Location: Richmond, BC, CAN
Posts: 137
Very slick idea, I like it.


Gujustud is offline   Reply With Quote
Old 11/29/2004, 01:03 AM   #21
Mike_McBrien
Registered Member

Join Date: Sep 2004
Location: Savannah, GA
Posts: 374
Nicely done Mate, now I just have to convince the wife to let me have a fishroom....


Mike_McBrien is offline   Reply With Quote
Old 11/29/2004, 06:40 AM   #22
cj_basser
Registered Member

cj_basser's Avatar

Join Date: Jul 2004
Location: Westerville, Ohio
Posts: 1,662
where did you get the ballast and sockets for the NO bulb?


cj_basser is offline   Reply With Quote
Old 11/29/2004, 06:47 AM   #23
MurphsReef
Registered Member

Join Date: Aug 2001
Location: chicago, il
Posts: 180
i like the overflow design. could you post some more detailed pics or diagram? thanks!


MurphsReef is offline   Reply With Quote
Old 11/29/2004, 11:26 PM   #24
Zephrant
Premium Member

Zephrant's Avatar

Join Date: Mar 2002
Location: Spokane, WA
Posts: 3,147
CJ- You can use the standard VHO sockets. Ballasts are available at any hardware store.

GR- I'll get some more pictures soon- I've added straps to the centers of them to pull them back in to shape, and once they settle for a few days, I'll glue in a center brace, and repost details.

Zeph


Zephrant is offline   Reply With Quote
Old 12/06/2004, 10:03 AM   #25
Shoestring Reefer
Registered Member

Shoestring Reefer's Avatar

Join Date: Jul 2003
Location: Westerly, RI
Posts: 4,989
Interesting idea. I wonder if plastic rain gutters could be used. They wouldn't be clear, but that's no biggie IMO if they are for frags.


__________________
Mike

Reefcentral Folding@Home team 37251 - Click my little red house to learn more and help medical science!

Current Tank Info: 2, 20-gal low tech tanks
Shoestring Reefer is offline   Reply With Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump


All times are GMT -6. The time now is 02:26 AM.


TapaTalk Enabled

Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2017, Jelsoft Enterprises Ltd.
Powered by Searchlight © 2017 Axivo Inc.
Use of this web site is subject to the terms and conditions described in the user agreement.
Reef CentralTM Reef Central, LLC. Copyright 1999-2014
